Elgato
Elgato Xlr Dock For Stream Deck +
Elgato Xlr Dock For Stream Deck +
Regular price
4,690.00 ฿
Regular price
Sale price
4,690.00 ฿
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

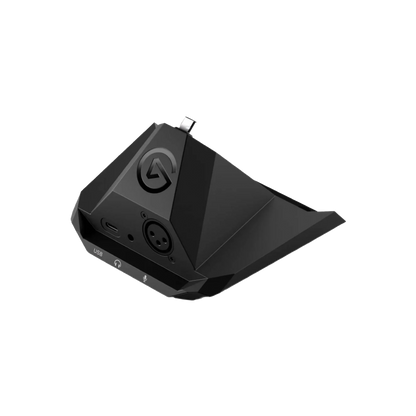

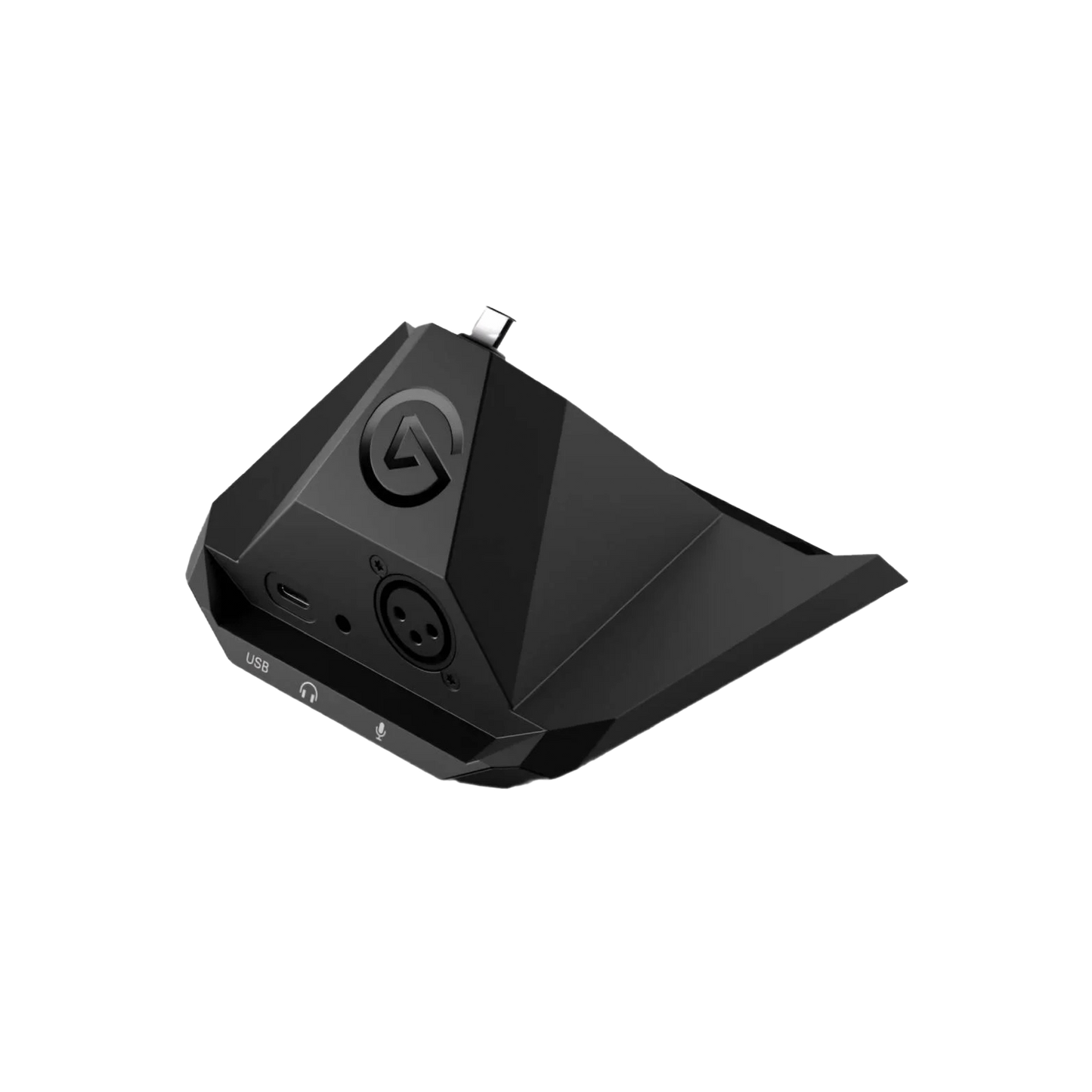

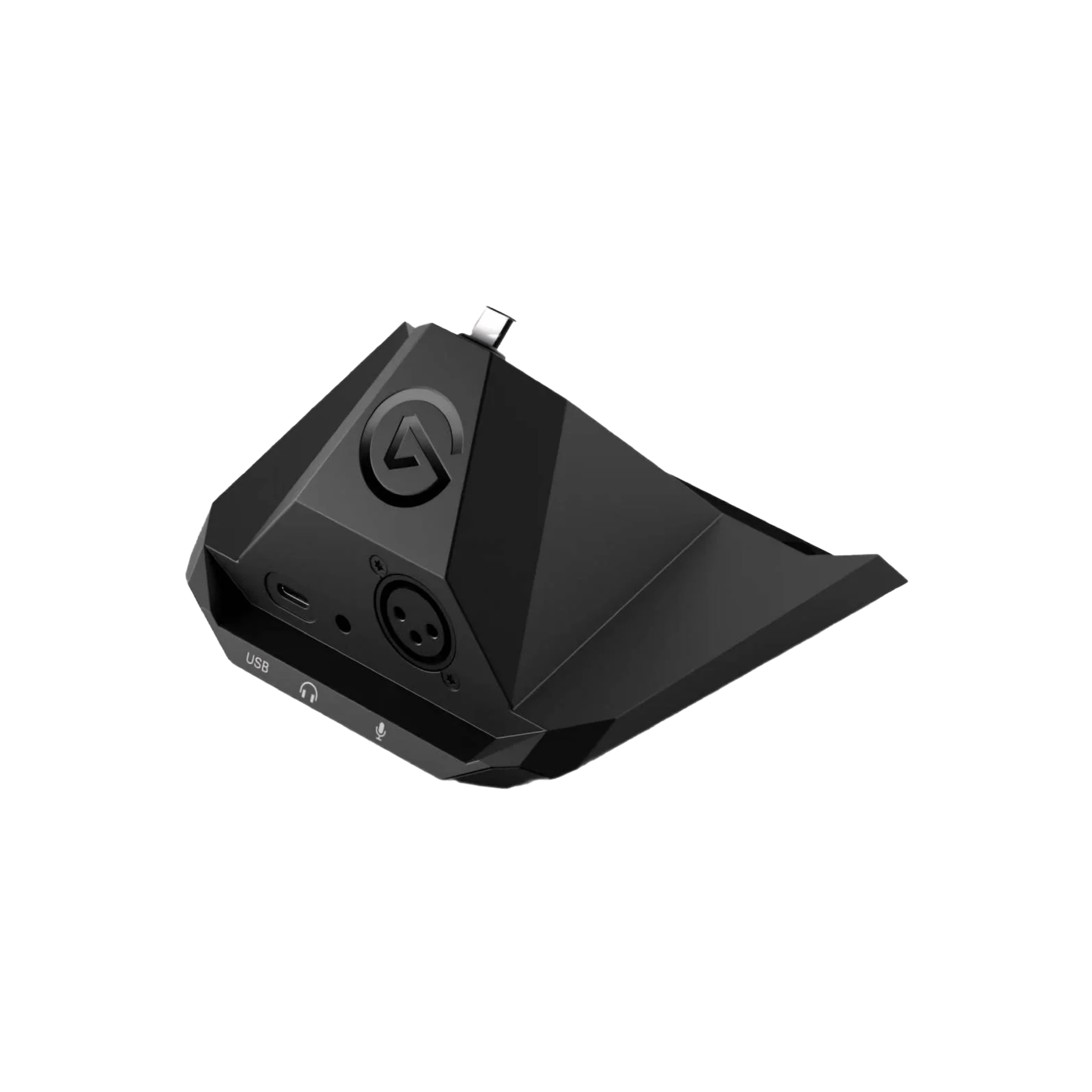

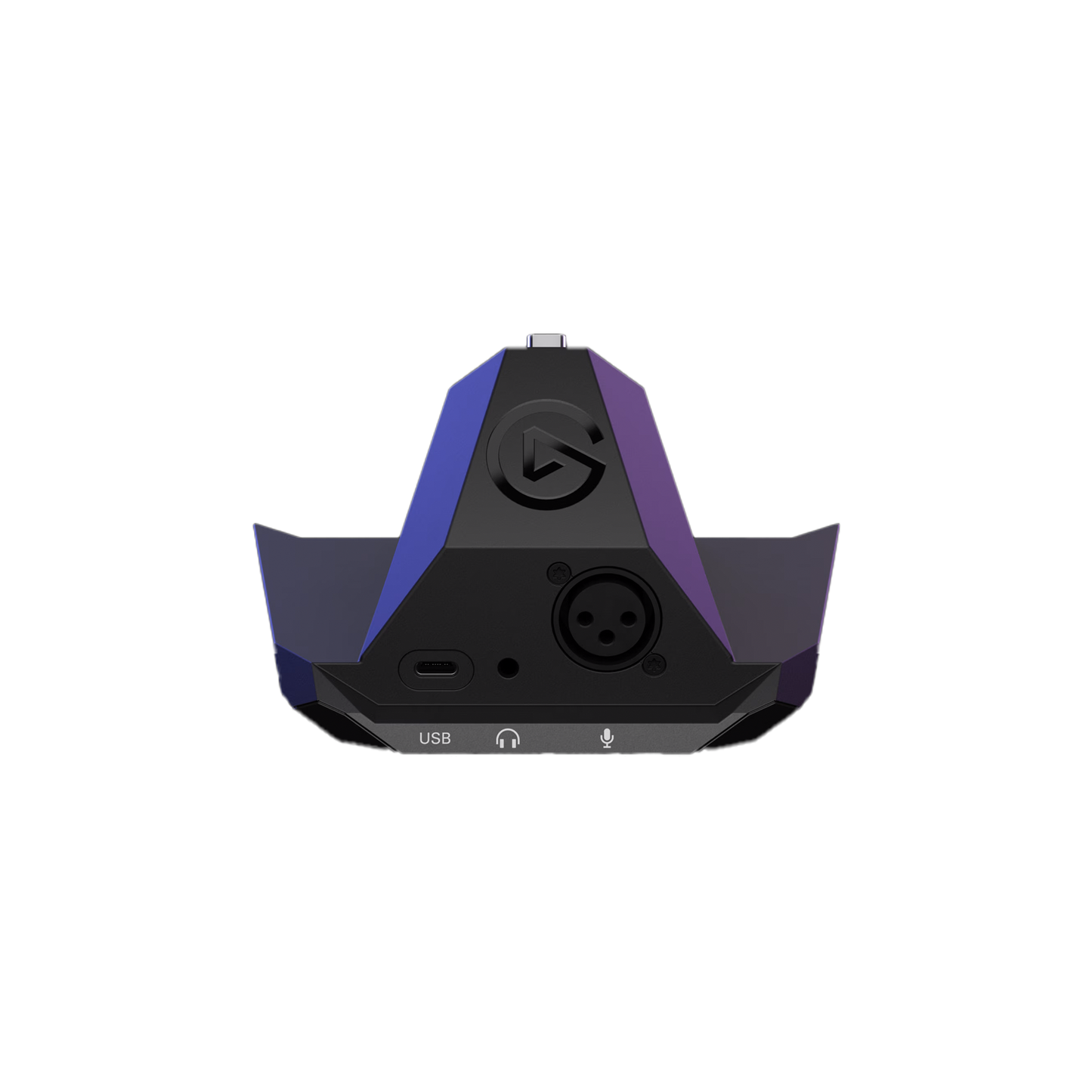

XLR Dock
Mic interface for Stream Deck +
Equipped with XLR Dock, Stream Deck + becomes the ultimate audio station. In back, plug in your XLR microphone for studio-like sound. Up front, customize controls to mix, monitor, or do just about anything. It's all your audio in one place, saving you focus and desk space.
Your Audio Controller
Adjust mic gain, mute Spotify, or switch from speakers to your headset
Your Mic Interface

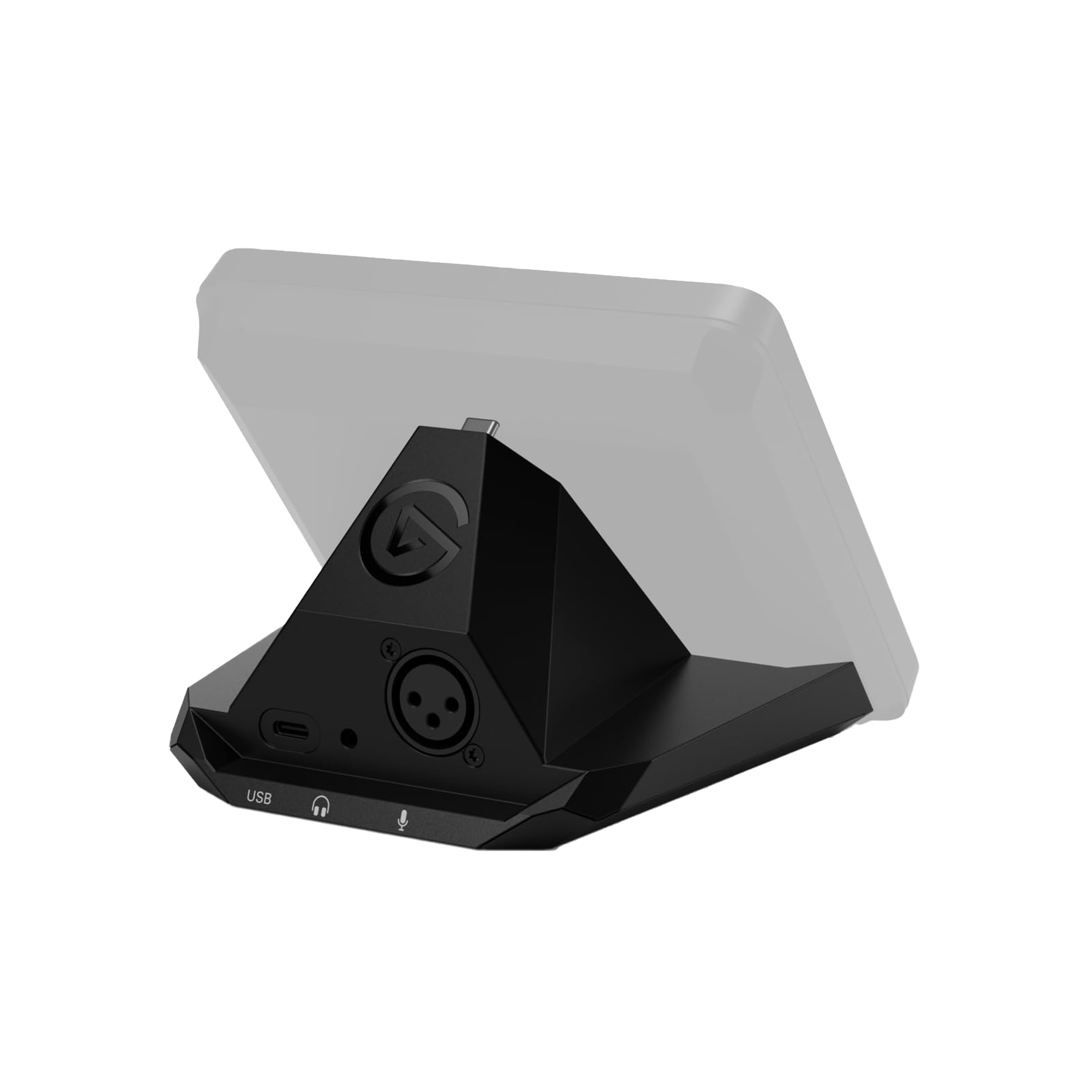

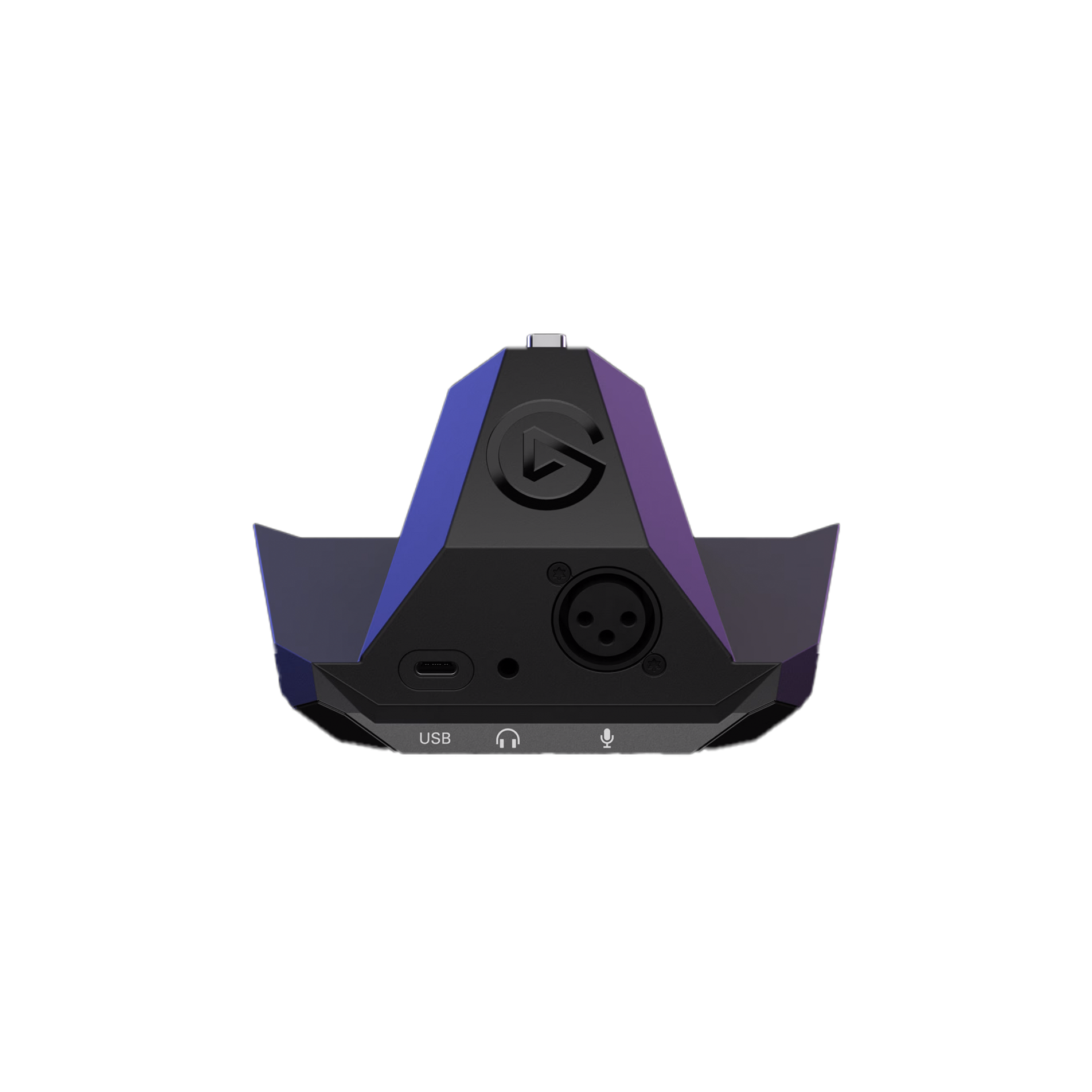

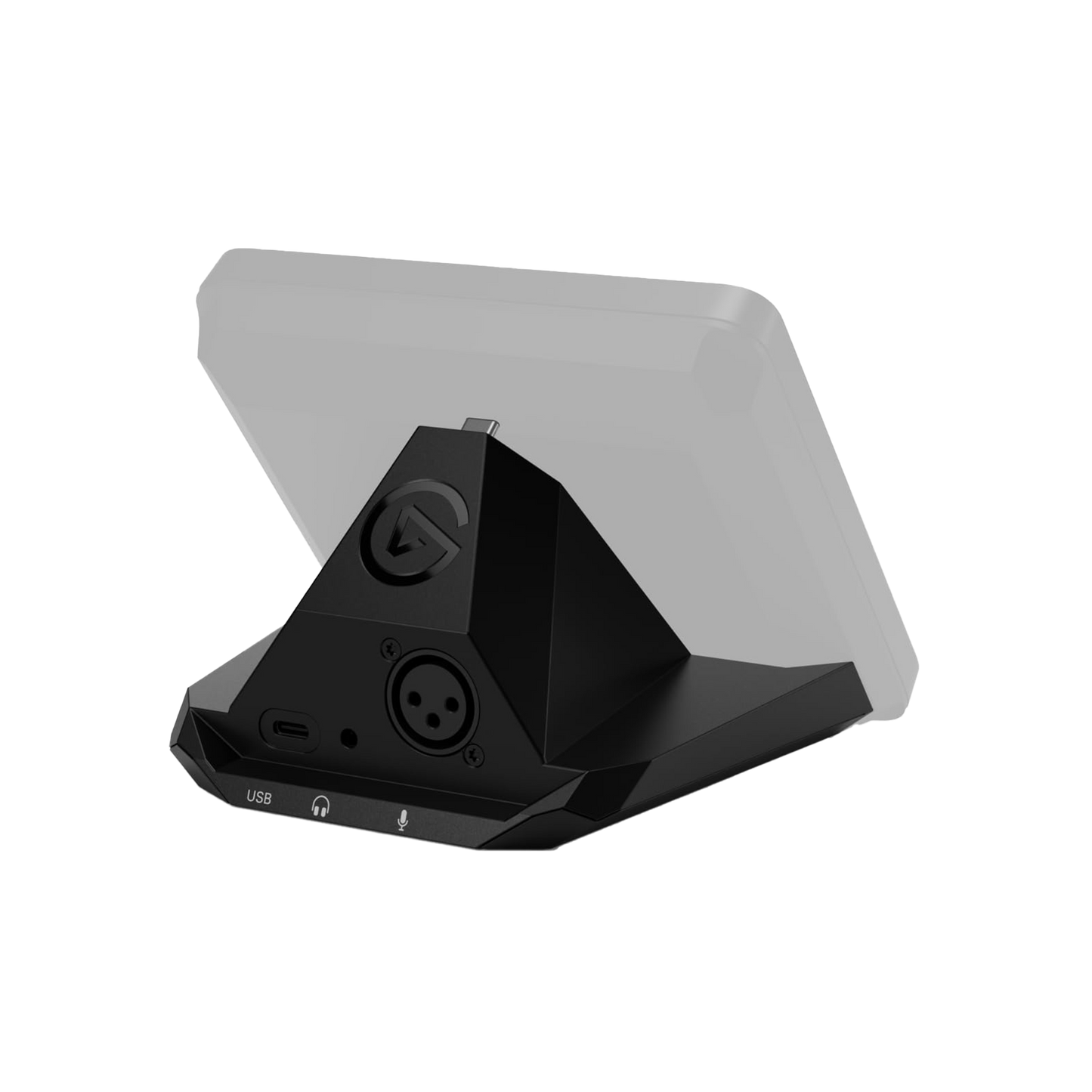

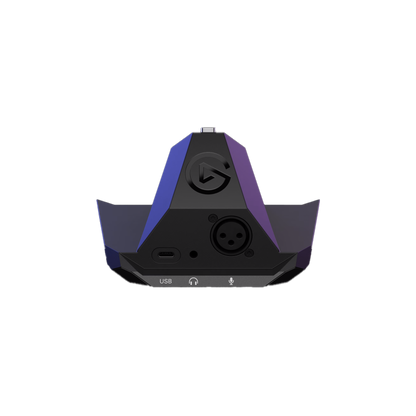

Connect your high-end XLR microphone to any computer
So you can free up desk space and do even more from one device
TOGETHER AS ONE
MINI PROFILE, BIG-TIME SOUND
Not to be underestimated, XLR Dock does everything a professional audio interface can do—and then some.
STUDIO PREAMP
Sound loud and clear without boosters or lifters
PHANTOM POWER
Brings condenser microphones to life with 48 V
NEVER CLIP AGAIN
When you get loud, Clipguard prevents distortion
ZERO-LATENCY MONITORING
Plug in headphones to hear yourself in real time
ONE CONNECTION
Everything's powered by a single USB cable
It's your mixer. Soundboard. Sampler.
And so much more
Stream Deck + and XLR Dock bring all your audio controls together—not just hardware, but also your apps. Tap to use a voice changer or push to talk in Discord. Turn to adjust headphone volume. Even monitor audio levels in real time. Everything is customizable and it's all in one place.
A snap to assemble
Short on DIY skills? No problem. XLR Dock installs in a few easy steps using only a Phillips screwdriver.
Tech Specs
FREQUENCY RESPONSE
20 Hz – 20 kHzDYNAMIC RANGE
100 dB (120 dB with Clipguard)EQUIVALENT INPUT NOISE (EIN)
-130 dBV at 60 dB gainGAIN RANGE
0 – 75 dBPHANTOM POWER
48 V DC, 7 mAMAX INPUT LEVEL
10 V at 0 dB gain (with Clipguard)MAX OUTPUT LEVEL
77 mWRESOLUTION
24-bitSAMPLE RATE
48 kHzINTERFACE
USB 2.0, Type-CDIMENSIONS
137 (W) x 115 (D) x 76 (H) mm | 5.39 x 4.53 x 2.99 inWEIGHT

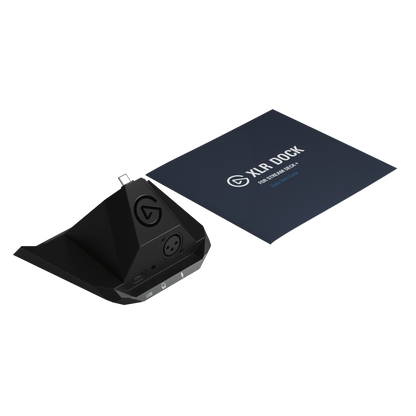

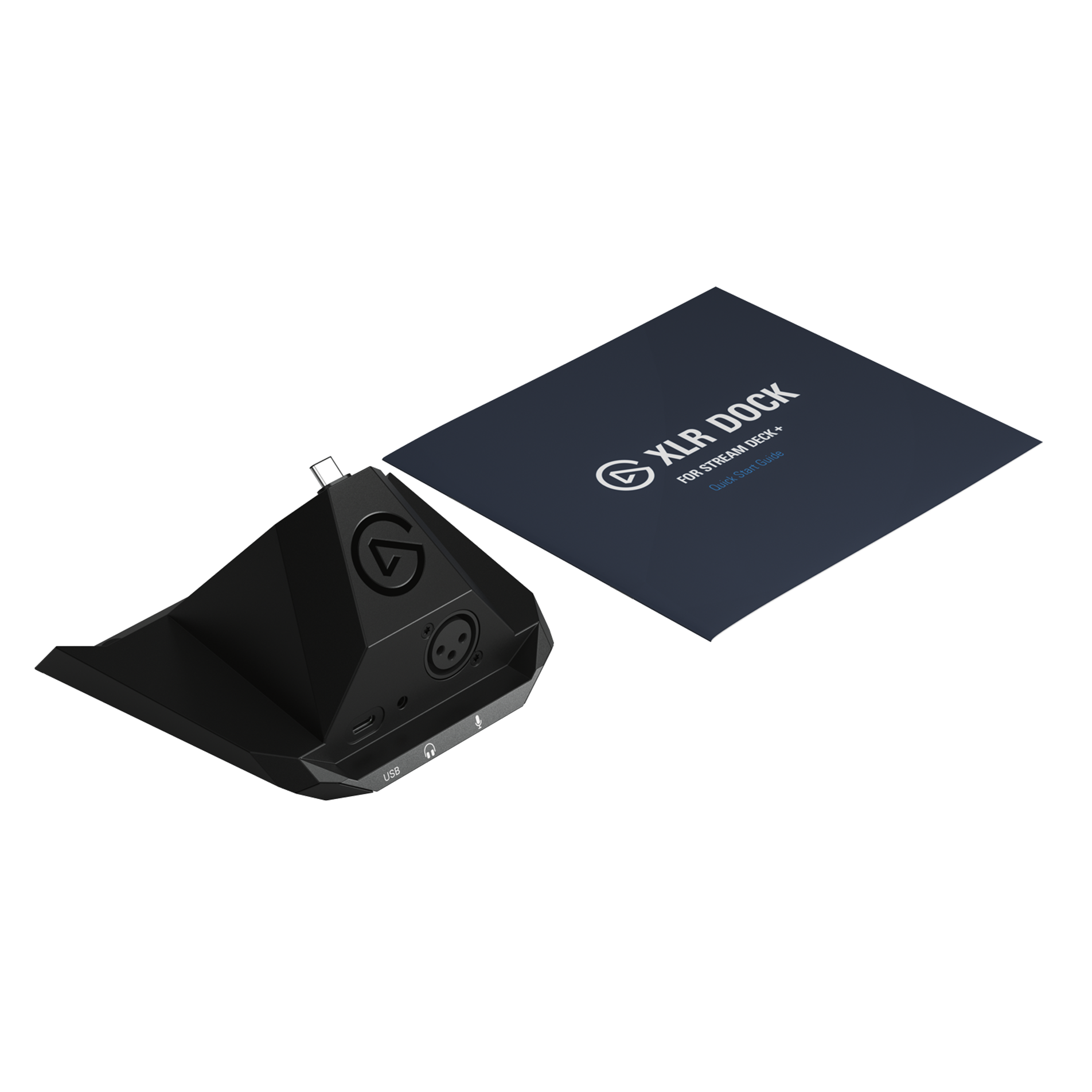

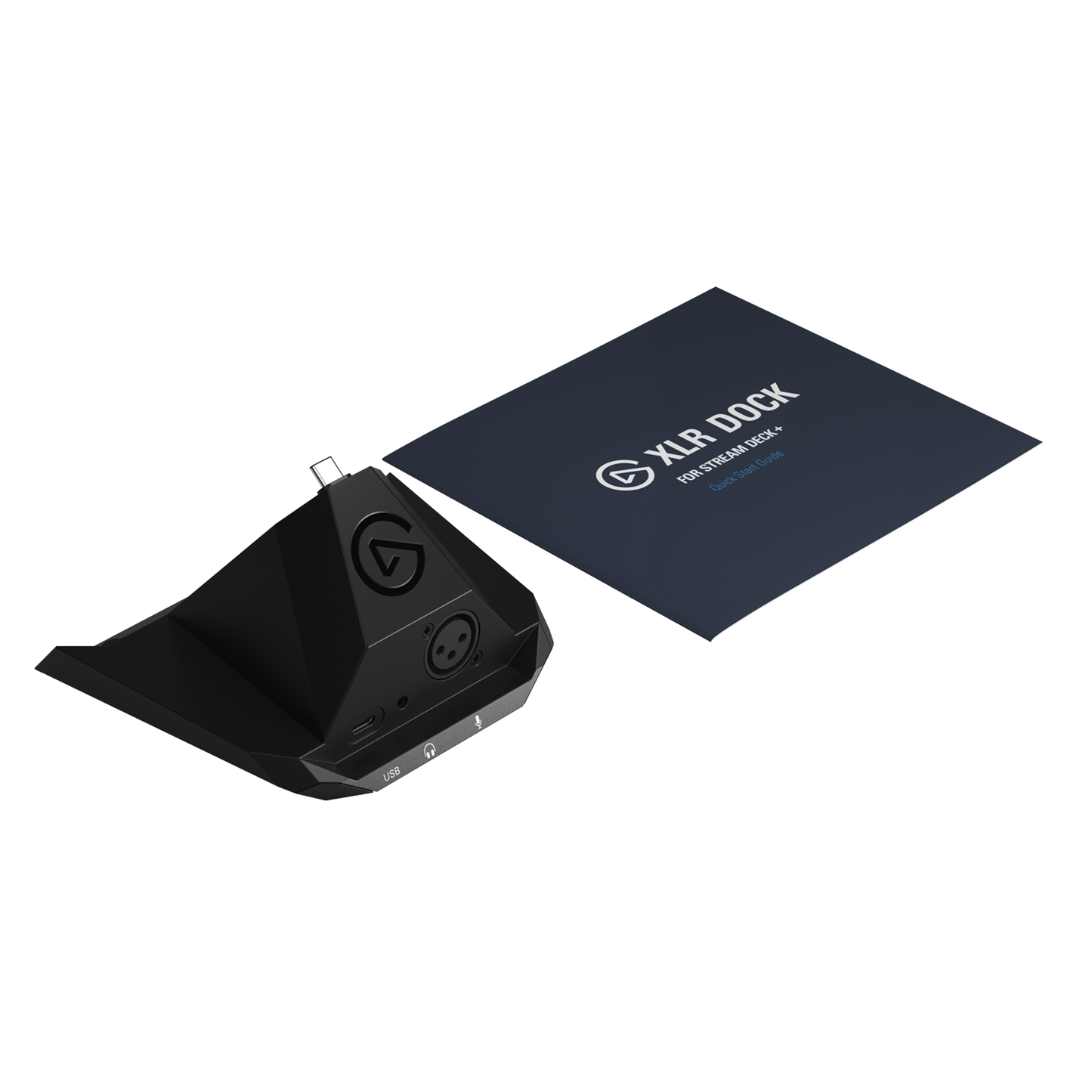

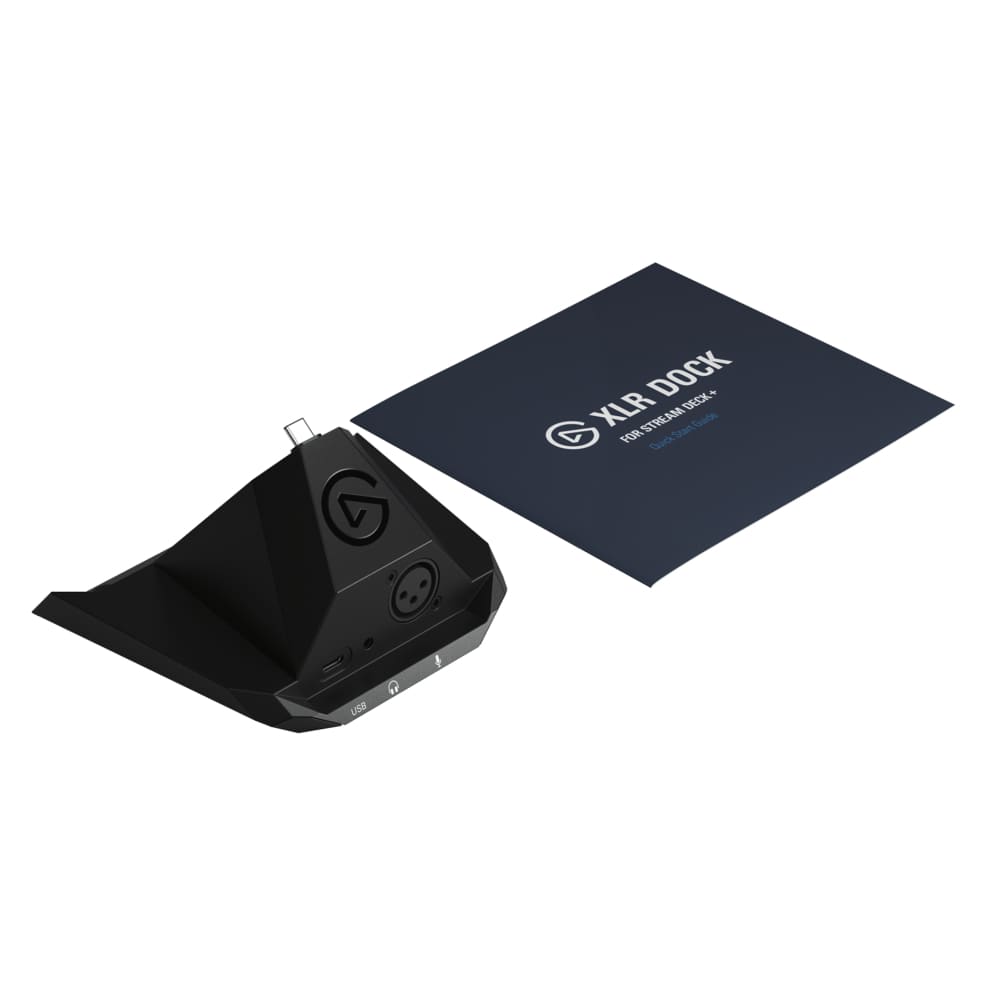

169 g | 5.96 ozIn The Box
XLR Dock for Stream Deck +
Quick Start Guide
Quick Start Guide
Conscious Packaging
Our goal is to be 100% plastic-free. We're at 95% and counting. Since launching our first capture device in 2012, we’ve taken impressive strides not only in advancing our technology but also our packaging.
System Requirements
Windows
OS
Windows 10 (64-bit) or later
Mac
OS
macOS 13 or later
