Fanatec

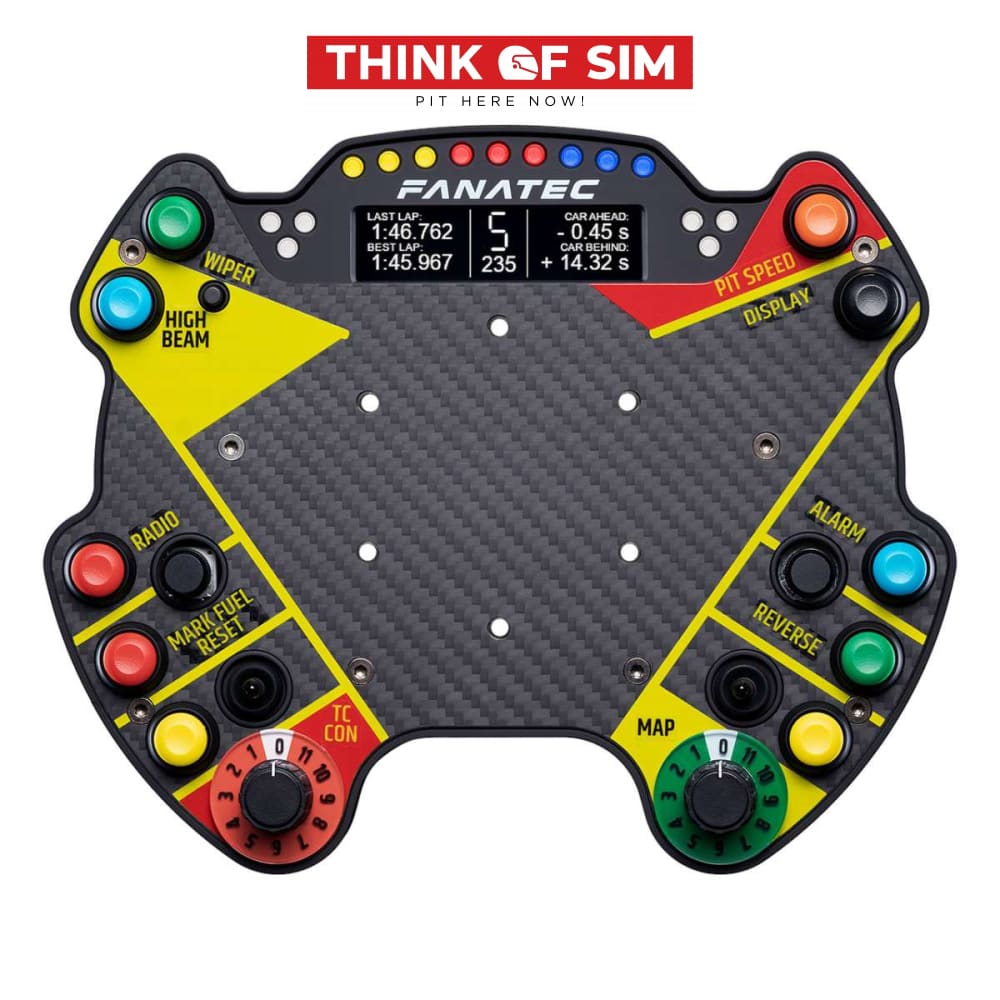

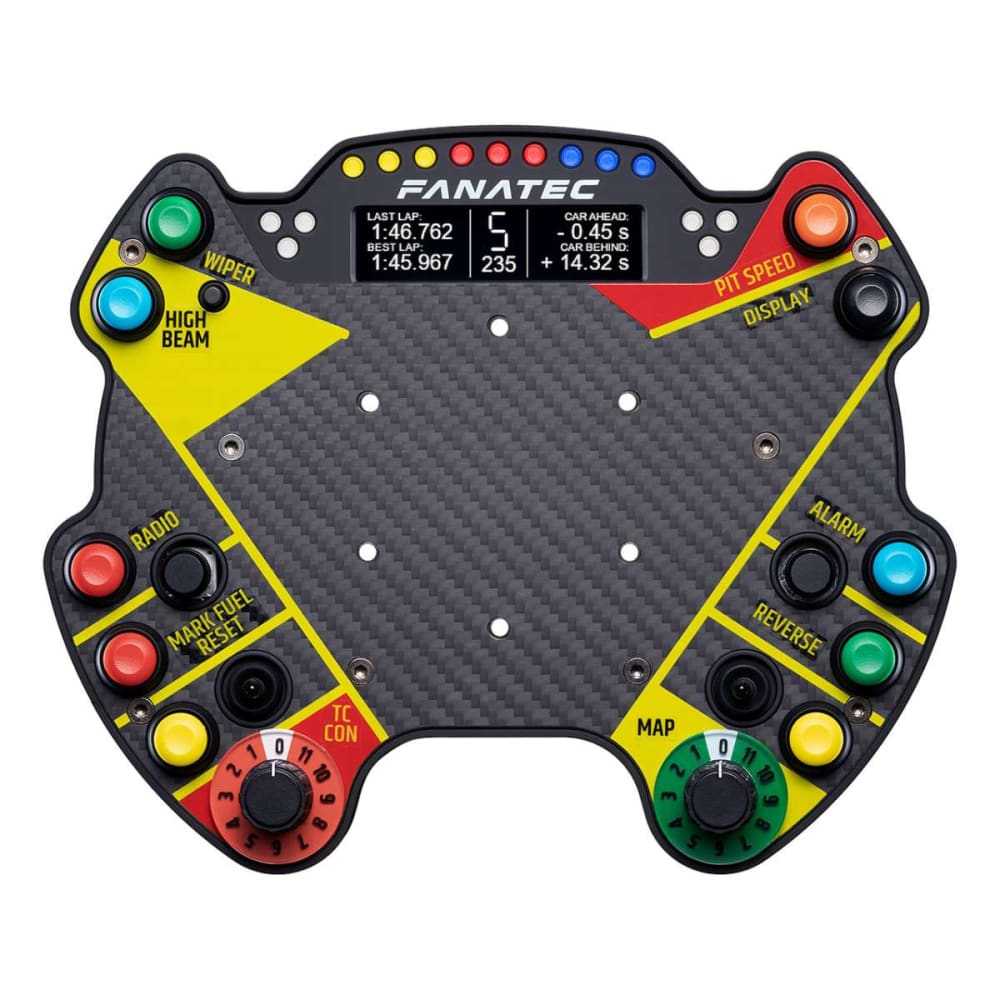

Fanatec Podium Button Module Endurance

Fanatec Podium Button Module Endurance

10,890.00 ฿
10,890.00 ฿
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

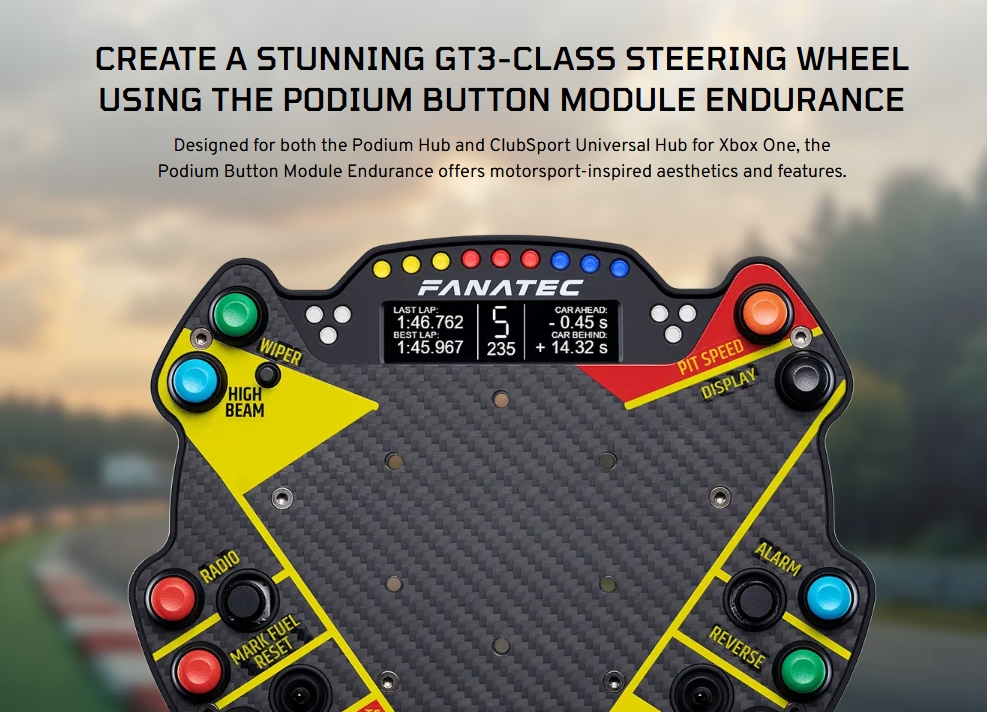

Create a stunning GT3-class steering wheel using the Podium Button Module Endurance.

Designed for both the Podium Hub and ClubSport Universal Hub for Xbox One, the Podium Button Module Endurance offers motorsport-inspired aesthetics and features.

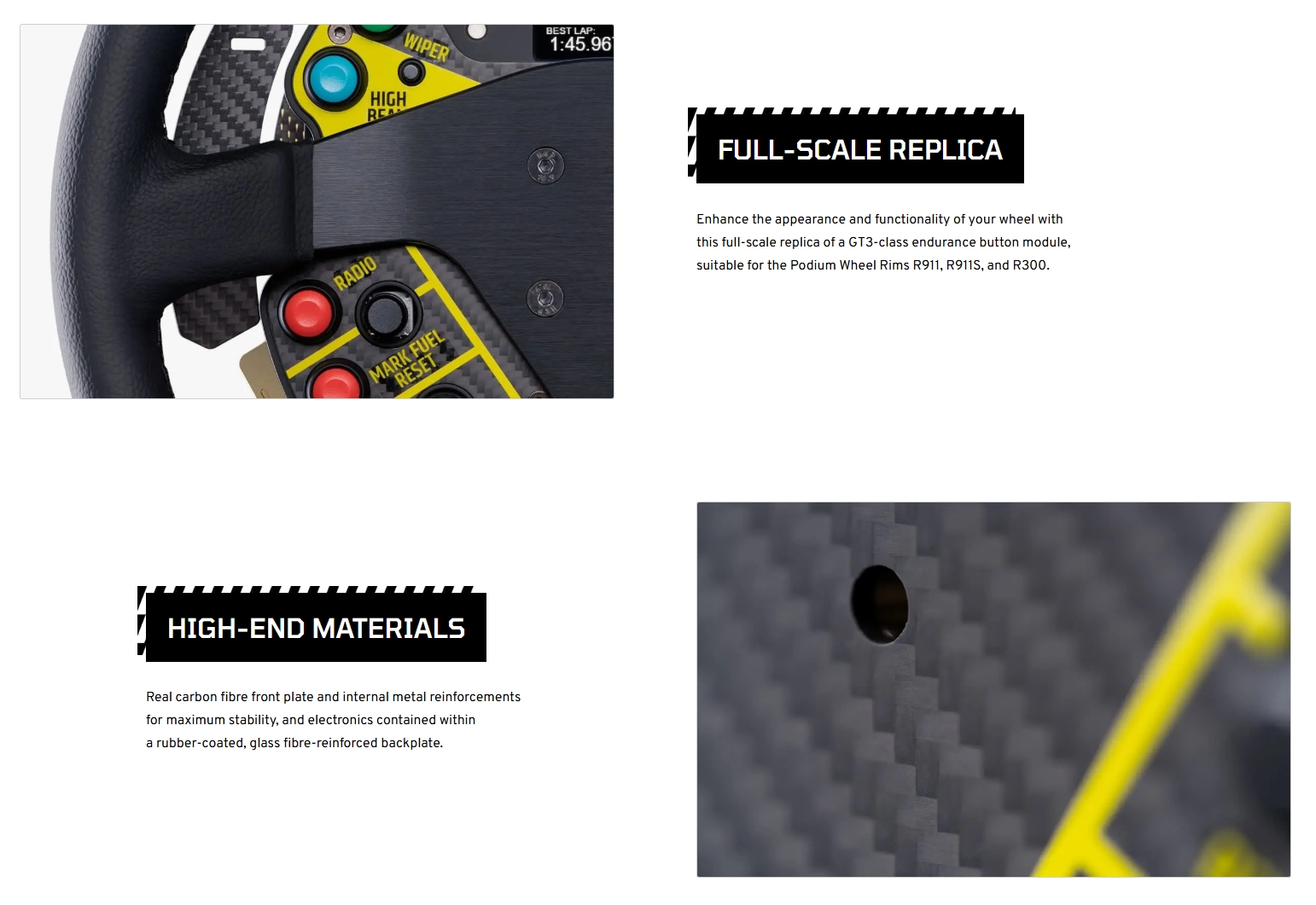

Full-scale replica.

Full-scale replica.

Enhance the appearance and functionality of your wheel with this full-scale replica of a GT3-class endurance button module, suitable for the Podium Wheel Rims R911, R911S, and R300.

High-end materials.

Real carbon fibre front plate and internal metal reinforcements for maximum stability, and electronics contained within a rubber-coated, glass fibre-reinforced backplate.
High-end materials.

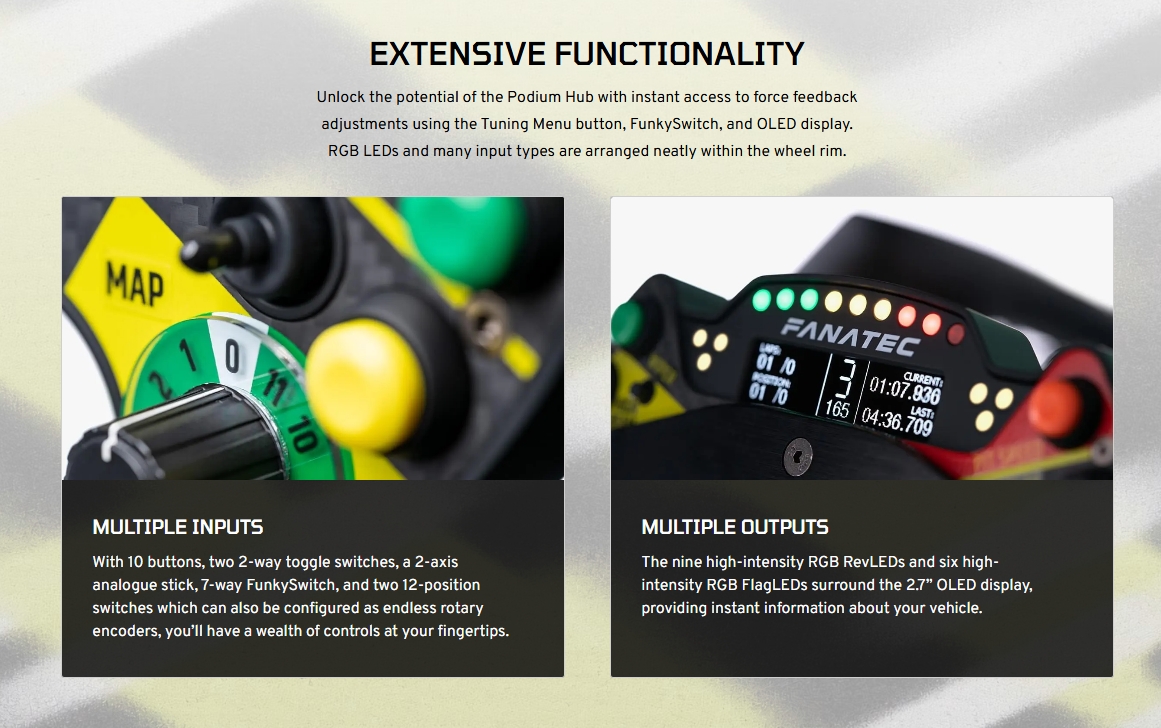

Extensive Functionality.

Unlock the potential of the Podium Hub with instant access to force feedback adjustments using the Tuning Menu button, FunkySwitch, and OLED display. RGB LEDs and many input types are arranged neatly within the wheel rim.
Multiple inputs.

Multiple inputs.

With 10 buttons, two 2-way toggle switches, a 2-axis analogue stick, 7-way FunkySwitch, and two 12-position switches which can also be configured as endless rotary encoders, you’ll have a wealth of controls at your fingertips.

Multiple outputs.

The nine high-intensity RGB RevLEDs and six high-intensity RGB FlagLEDs surround the 2.7” OLED display, providing instant information about your vehicle.
Multiple outputs.

Intelligent Telemetry Mode.

The customisable OLED display offers enhanced display capabilities through Intelligent Telemetry Mode (ITM).

Wide OLED display.

Much like the OLED display on the Podium wheel bases, the Podium Button Module Endurance display can show detailed information, including many telemetry data types at once.

Maximum flexibility.

Switch between five different game telemetry data layouts (manually or triggered by the game). Games without ITM support will automatically run in Legacy Mode.

Further links

Questions about the product? Further Podium products

Features

  • Upgrade module for Podium Hub and ClubSport Universal Hub for Xbox One (with included adaptor)
  • Real carbon fibre front plate and internal metal reinforcements for maximum stability
  • Rubber-coated glass fibre reinforced backplate
  • Lightweight at 410g
  • Full-scale replica to class-leading endurance GT3 racing car
  • 10 buttons
  • Two 2-way toggle switches
  • Two 12-way Multi-Position Switches with Encoder Mode (endless rotation)
  • One FunkySwitch (7-way joystick/encoder)
  • One analogue joystick (2-axis)
  • Nine RGB high-intensity RevLEDs
  • Two FlagLED groups with three RGB high-intensity LEDs each
  • User-defined LED behavior via FanaLab
  • Integrated 2.7” 256x64 resolution OLED display
  • Tuning functions in the OLED display
  • Support for Intelligent Telemetry Mode (ITM)
  • Clutch bite point indication on the OLED display (when used in combination with the Podium Advanced Paddle Module)
  • Detachable button caps, compatible with other Fanatec button caps (Xbox, PS4, Racing Style)
  • Compatible with Fanatec R911, R911S, and R300 wheel rims
  • Reversible DataPort-C connector
  • Customisable button labels (sticker set included)

Compatibility

Peripherals

  • ClubSport Universal Hub for Xbox One
  • ClubSport Universal Hub V2
  • ClubSport Universal Hub V2 for Xbox
  • Podium Hub



Wheel Bases:

This product is only compatible with the following wheel bases:

  • PODIUM Wheel Base DD1
  • PODIUM Wheel Base DD2
  • PODIUM Wheel Base DD1 PS4™
  • ClubSport Wheel Base V2.5
  • ClubSport DD Wheel Base
  • ClubSport DD+ Wheel Base
  • CSL DD Wheel Base
  • Gran Turismo DD Pro Wheel Base
  • CSL Elite Wheel Base +
  • CSL Elite Wheel Base V1.1



Wheel Rims:

  • Podium Wheel Rim Porsche 911 GT3 Cup (Suede)
  • Podium Wheel Rim Porsche 911 GT3 Cup (Leather)
  • Podium Wheel Rim R300*
  • ClubSport Wheel Rim 320
  • ClubSport Wheel Rim 320 Alcantara®

Note: Wheel rims like the ClubSport Drift are compatible but not recommended. The ClubSport Wheel Rim GT and similar rims are NOT compatible due to the proximity of the spokes and buttons.

*Due to the smaller diameter of the R300, there is a tight clearance between the Button Module Endurance and the base of the wheel rim.

Platforms

  • Xbox: this product becomes compatible with Xbox One / Series X|S consoles when used with a 'ClubSport Universal Hub for Xbox One' or 'ClubSport Universal Hub V2 for Xbox'. The functionality of this product on Xbox may be limited by the capabilities of the console (subject to firmware/OS changes and developer support).
  • PlayStation: this product becomes compatible with PS4 / PS5 when used with a PlayStation-licensed Wheel Base. The functionality of this product on PlayStation may be limited by the capabilities of the console (subject to firmware/OS changes and developer support).
  • PC: this product is compatible with Windows PC. Functionality is game-dependent and subject to developer support.

Special Notes

  • A Fanatec Hub (e.g. Podium Hub, ClubSport Universal Hub) is required for operation on a Fanatec wheel base.
  • The Podium Button Module Endurance extends the distance between the Hub and Wheel Rim by 11mm.
  • This product is only suitable for wheel rims with a 6x70mm hole pattern.
  • If you wish to use this product with a third-party wheel rim, please check the sizing template in the Downloads section.

Packaging Details

  • Dimensions (L x W x H)33.5cm x 21cm x 10cm
  • Weight0.8kg
  • Volume weight1.29kg

What's included

  • 1x Podium Button Module Endurance
  • 6x M5x25mm bolts
  • 1x DataPort-C to RJ12 adaptor
  • 1x Porsche-style sticker set
  • 1x Quick Guide

Technical Specifications

  • PlatformPC, PS4 Ready, XBox One Ready
