Qubic System QS-220 3 DOF
Qubic System QS-220 3 DOF
Couldn't load pickup availability
Innovative technology, modular and compact design, as well as the extremely quiet operation makes the 3DOF QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured with dedicated cockpits from Qubic System product line.
includes the entire 3DOF set
SETUP AND VARIANTS
2DOF CONFIGURATION – FRONT VARIANT
2DOF CONFIGURATION – BACK VARIANT

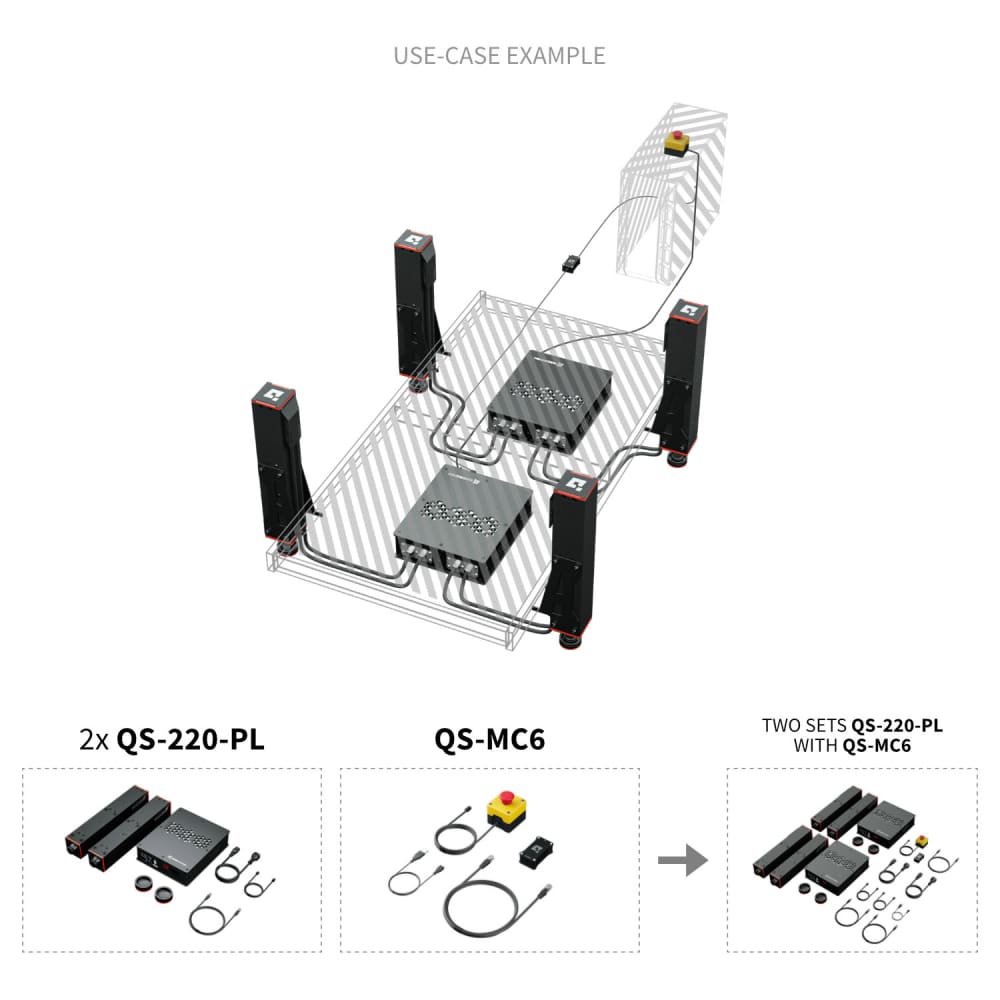

3DOF CONFIGURATION
3DOF SET HIGHLIGHTS
Key Features
- Maximum velocity: 800 mm/s/per actuator
- Maximum acceleration: 0.8 G
- Actuator stroke: 100 mm | 3,93 in
- Latency: <8 ms
- Maximum control frequency: 1000 Hz
- Vibration frequency range: 0-100 Hz
QS-220 – SET KEY FEATURES
- Super silent – extremely quiet operation
- Used by professional race car drivers and pilots around the world
- Top quality ecosystem for personal and commercial applications
- Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
- VR HeadWay technology support (VR sickness compensation)
- Over 80+ integrated and supported racing and flight games
- Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers
Proudly made in EU: Engineered, Designed and Manufactured in Poland
What's Included

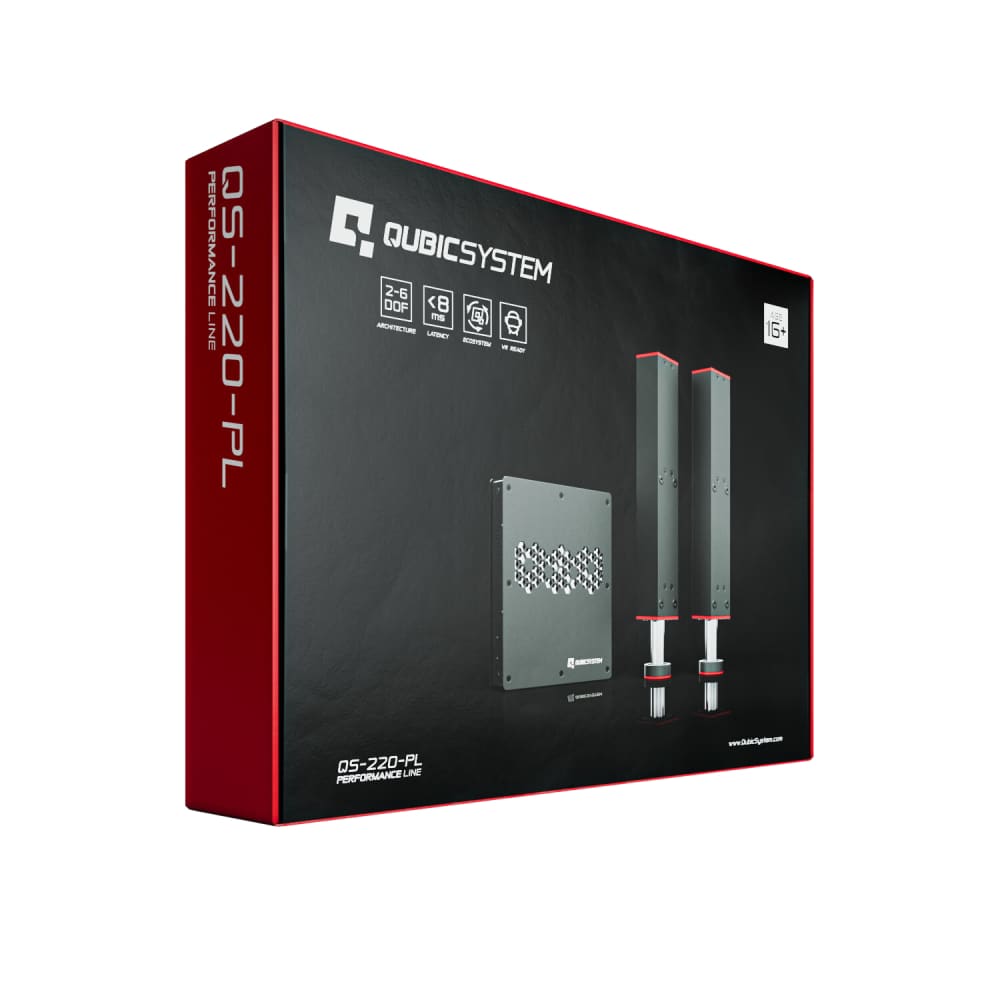

QS-220 3DOF MOTION SYSTEM COMES IN 3 BOXES:
2x linear actuators and power cabinet and accessories
1x motion controller

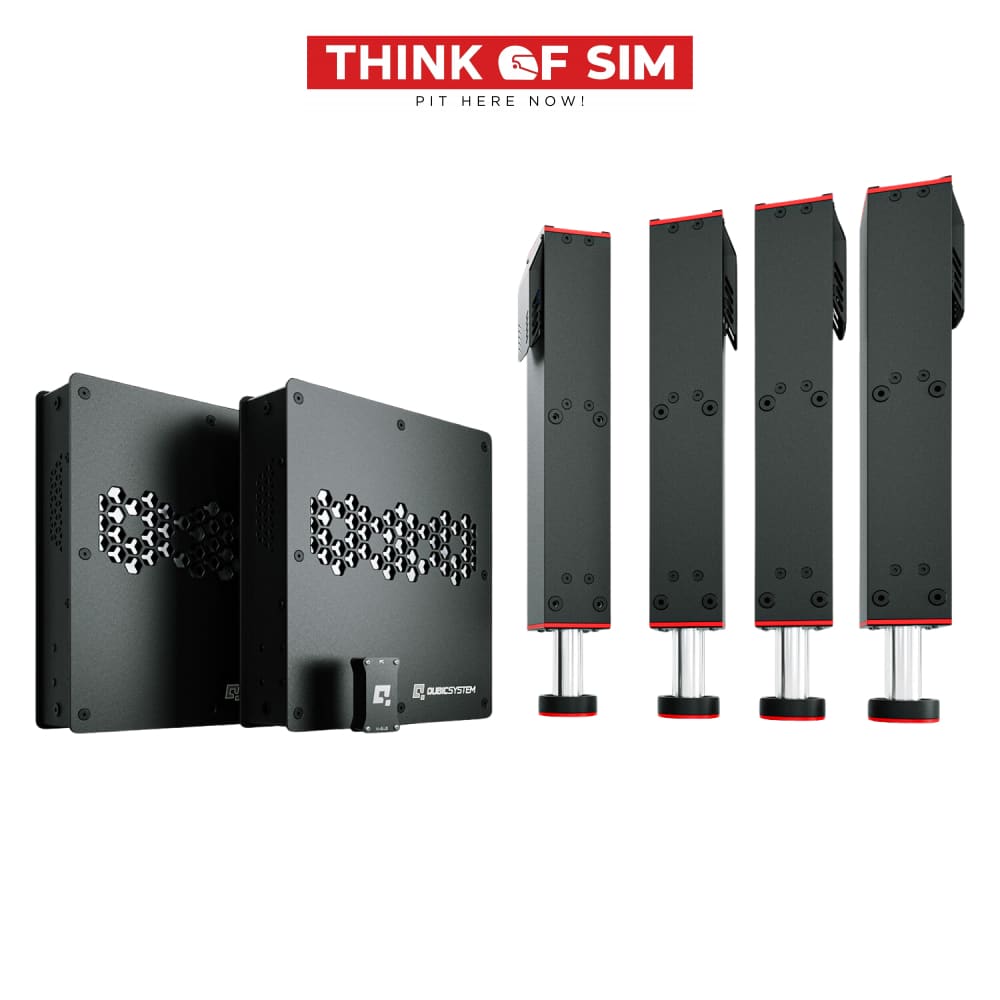

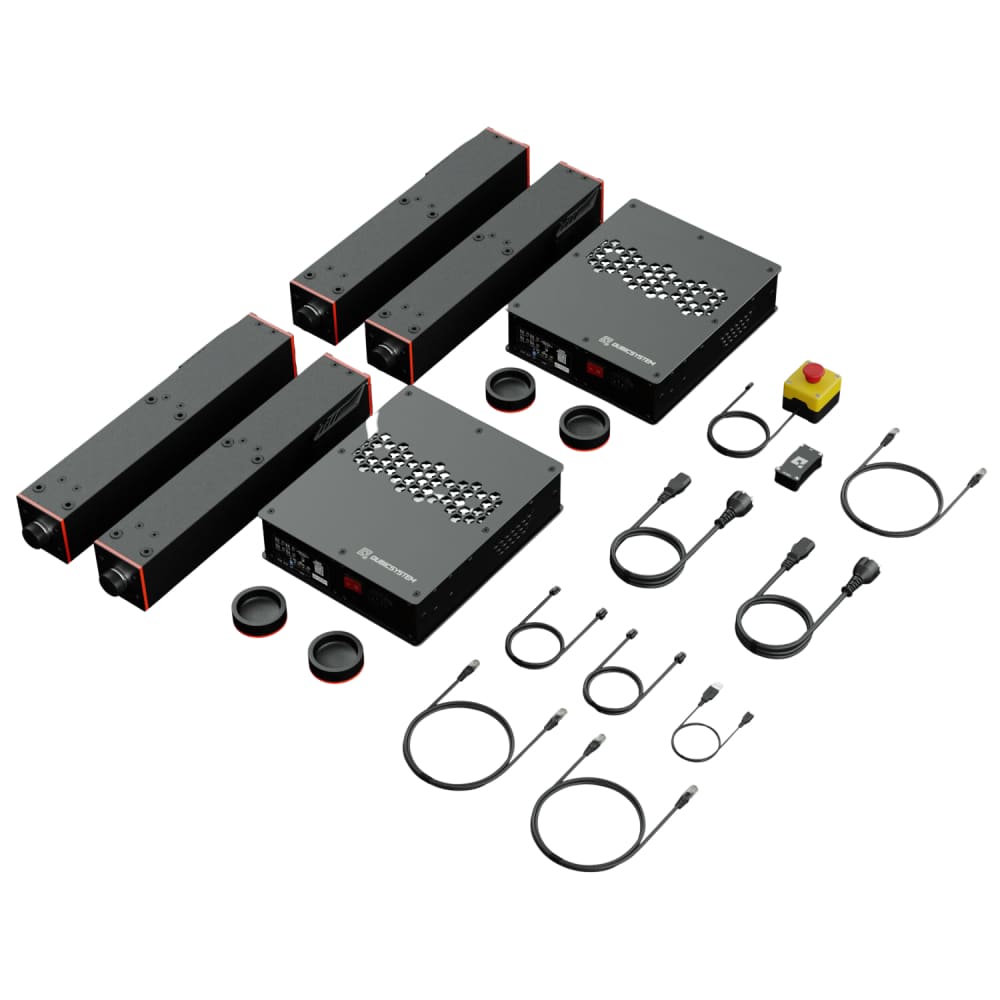

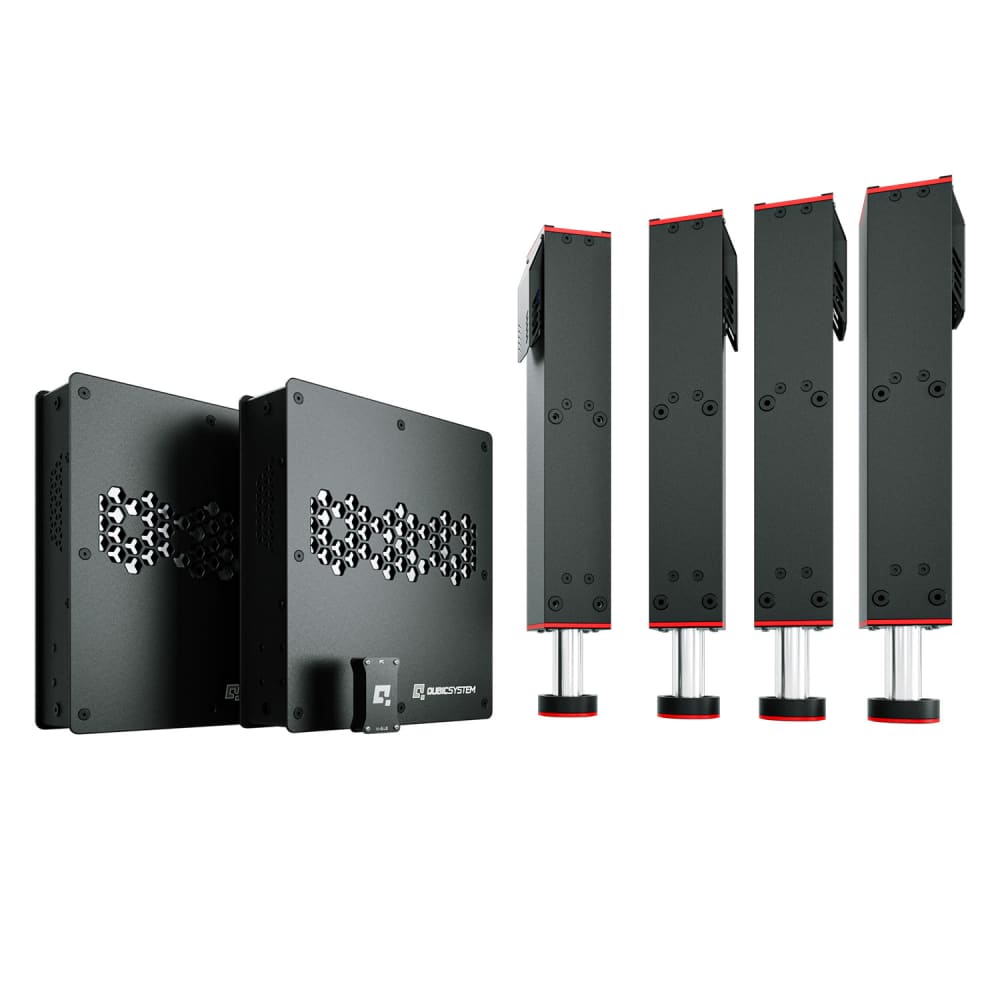

QS-220 3DOF MOTION SET CONSISTS:
4x – linear actuator with stabilization plates
2x – power cabinet (control module)
1x – motion lock cable (up-link/down-link) – 2 m long
1x – power cable
BOX DIMENSIONS:
71 cm x 53 cm x 16 cm | 27.9 in x 20.9 in x 6.3 in
BOX WEIGHT:
30 kg| 66.14 lb

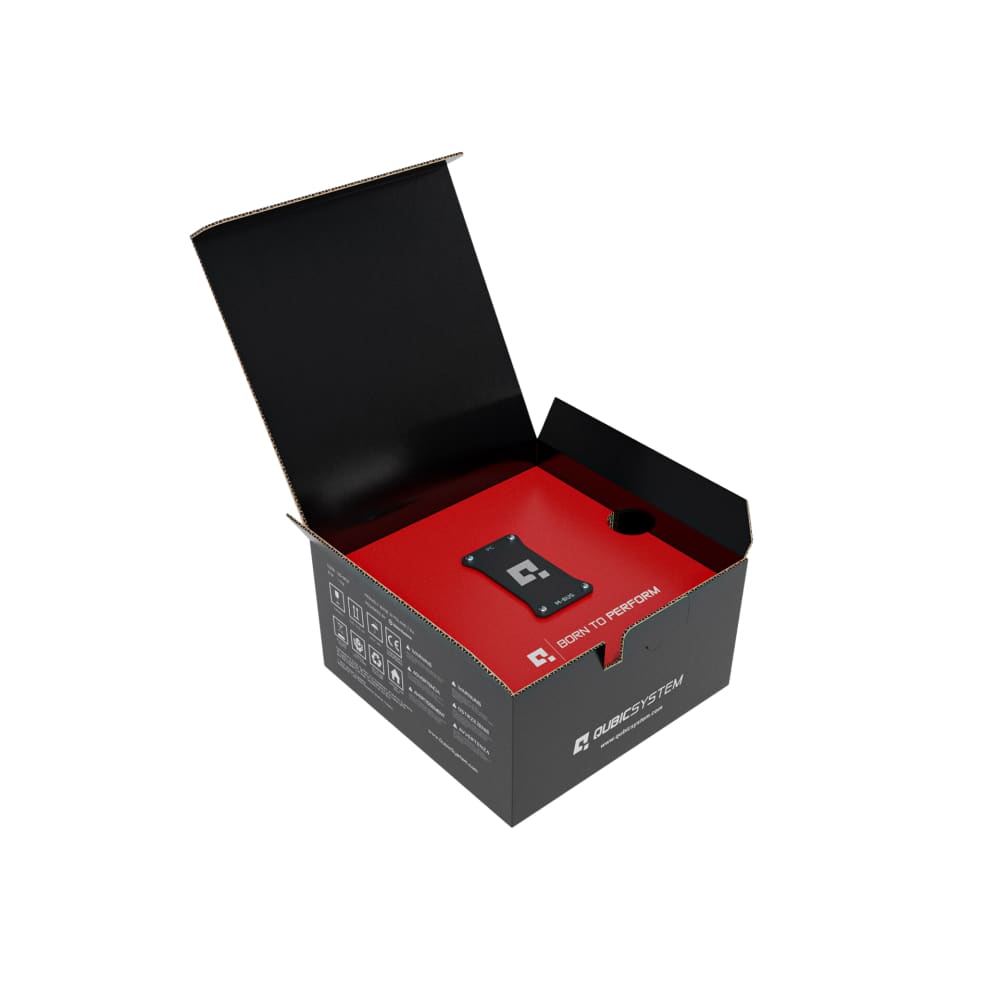

QS-MC6 CONTROLLER SET:
1x – M10 – USB Controller
1x – motion lock with additional 2 m cable
1x – M-BUS terminator
1x – 0.5 m cable (USB micro B)
1x – patchcord cable – 2 m long
BOX DIMENSIONS:
20 cm x 20 cm x 13 cm | 7.9 in x 7.9 in x 5.1 in
BOX WEIGHT
1 kg | 2.2 lb
