Qubic System

Qubic System QS-V20

Qubic System QS-V20

Regular price 778,890.00 ฿
Regular price Sale price 778,890.00 ฿
Sale Coming Soon
Taxes included. Shipping calculated at checkout.

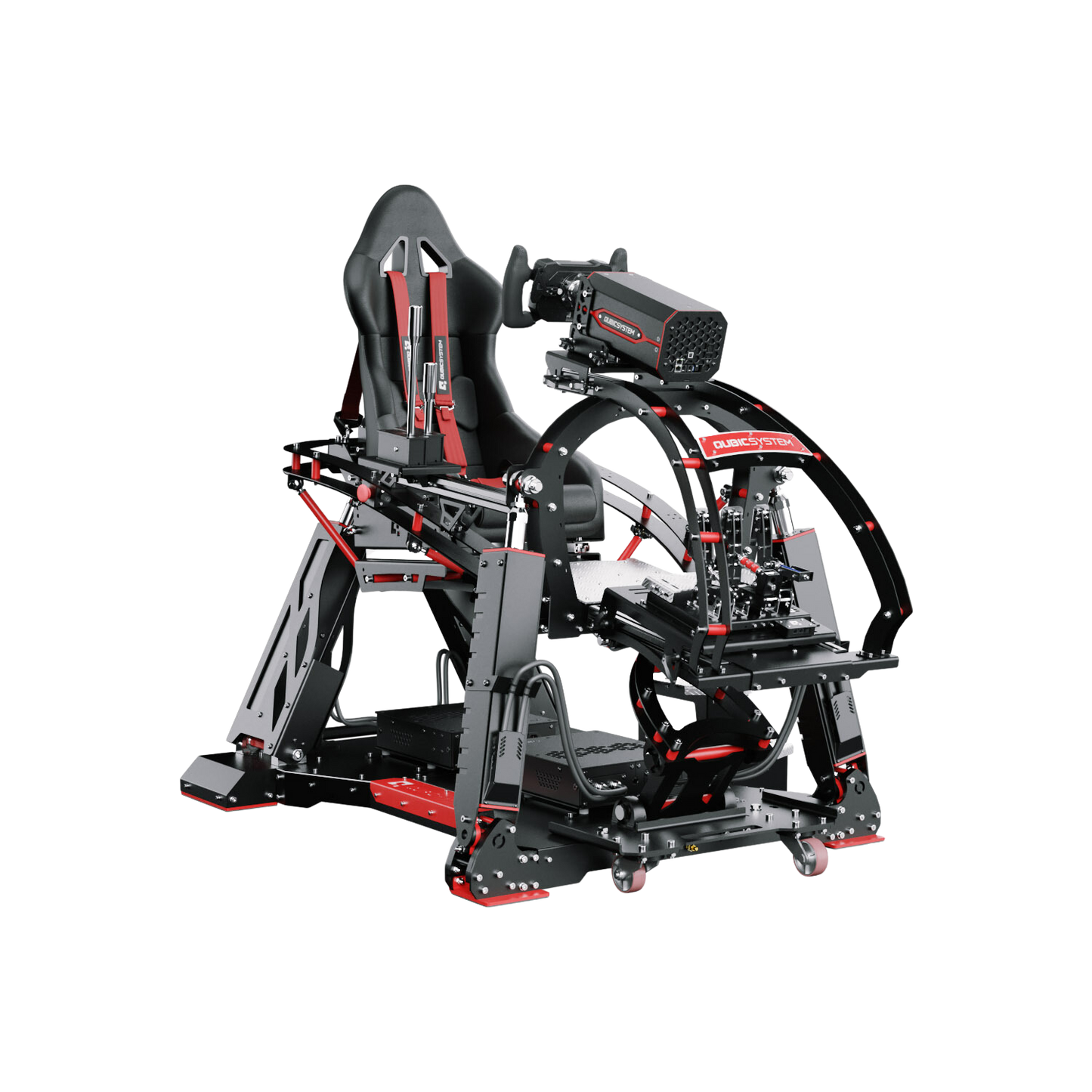

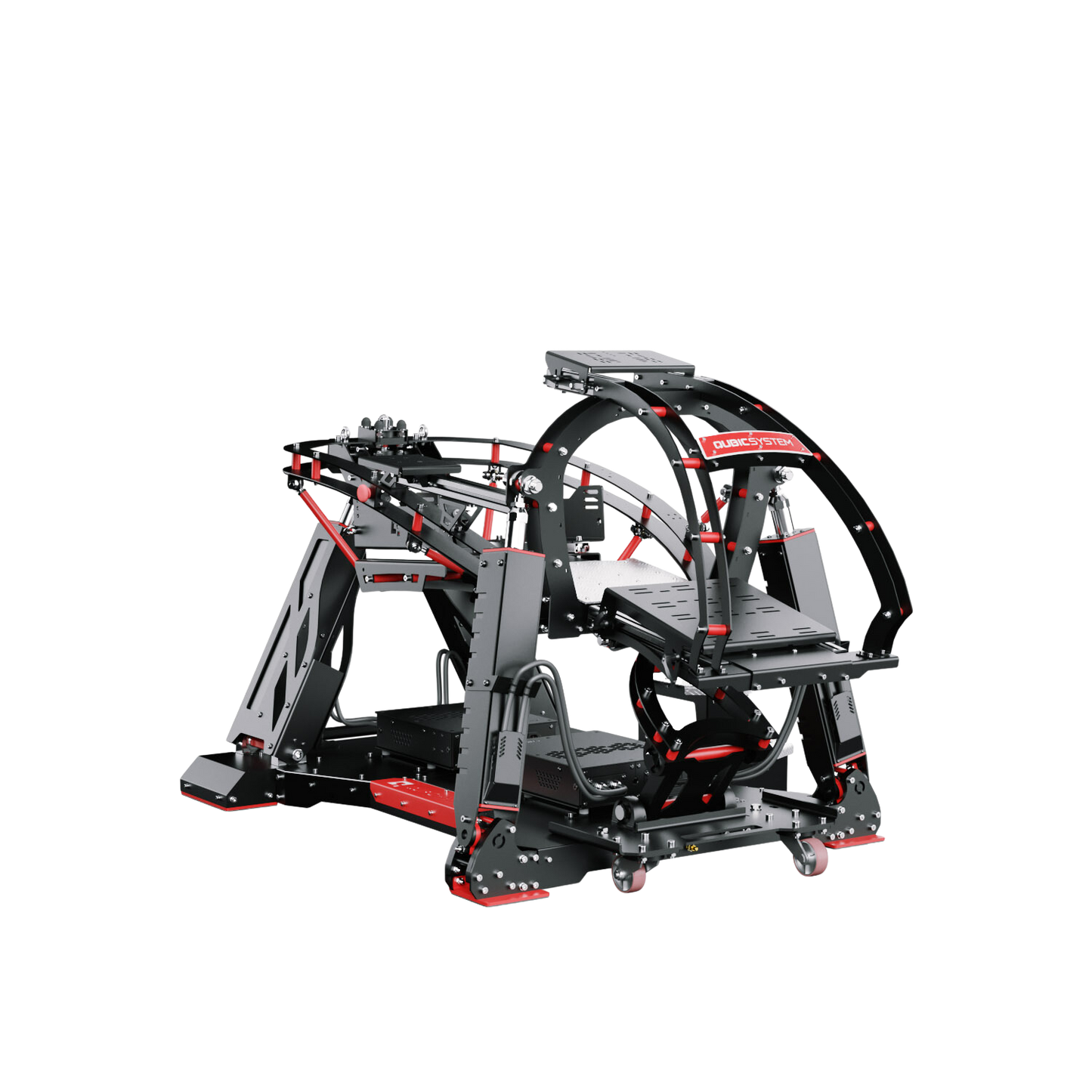

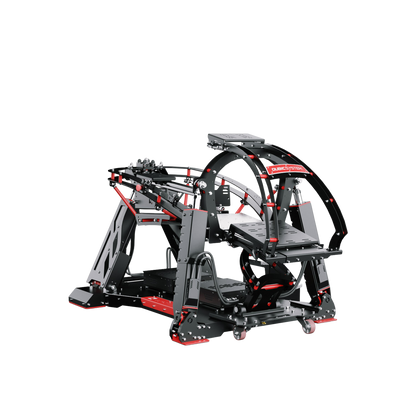

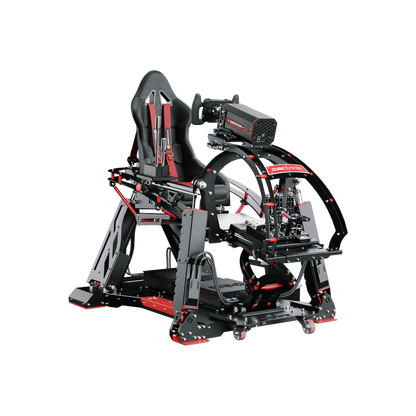

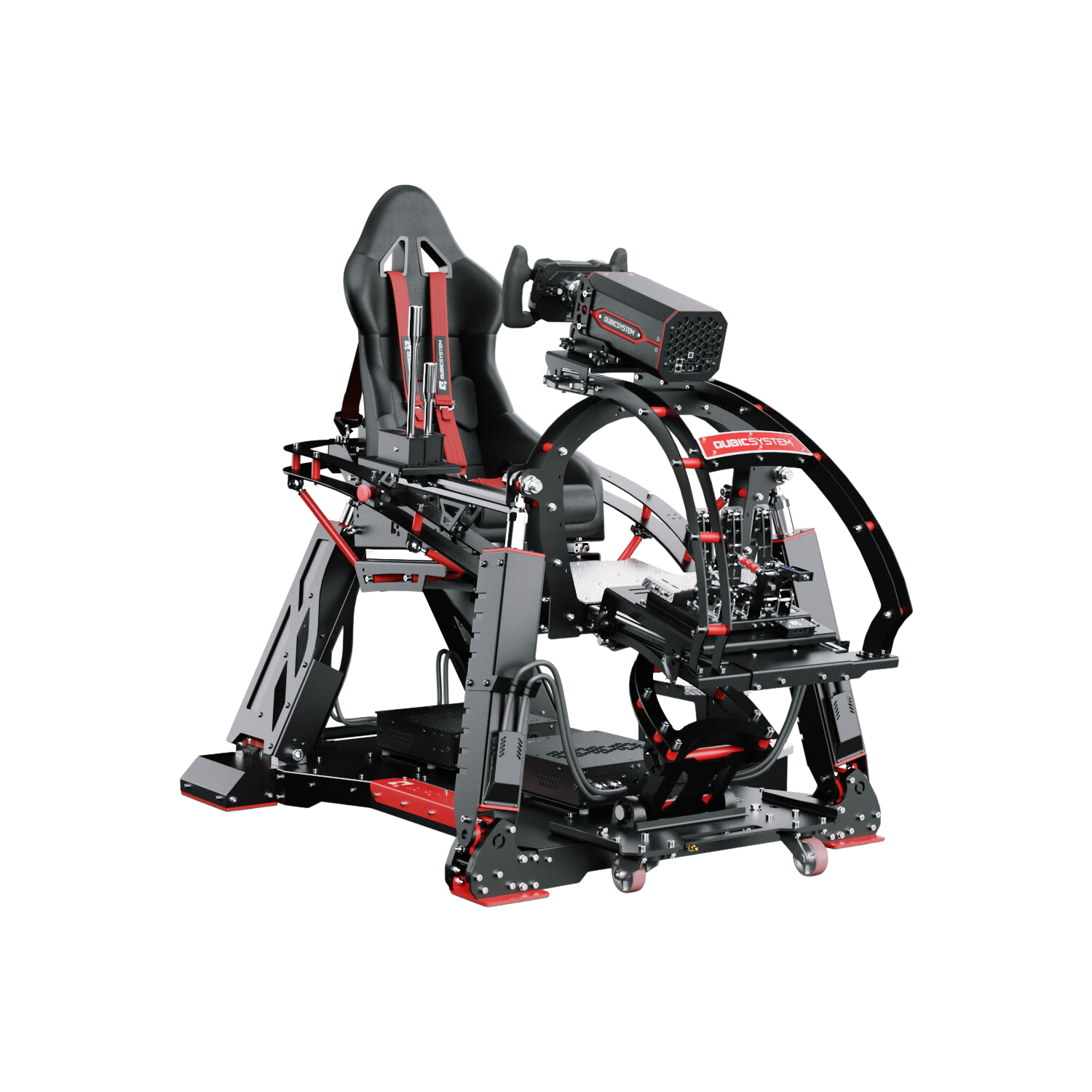

The QS-V20 is an extended 4DoF motion cockpit, designed for pro racing car simulation, dedicated to both drivers training and sim racing enthusiasts. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, GT and F1 simulations, also the small footprint and lightweight design allow to fit the machine to every racing room.

Motion Cockpit QS-V20


USE-CASE EXAMPLE

Motion Cockpit QS-V20

        Key Features
  • Proudly made in EU: Engineered, Designed and Manufactured in Poland

    What's Included

    The QS-V20 is transported in a specially adapted transport box.

    Box with QS-V20 included:

    • QS-V20 Motion Platform
    • QubicManager software download
    • USB and power cables
    • Nuts and Bolts required for assembly
    • Product Manual
    • Based on world’s fastest Qubic System linear actuators
    • Compact and lightweight design
    • Suitable for Rally, GT and F1 simulations
    • Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
    • Traction loss
    • Also, available as expansion set from 3DOF to 4DOF of QS-220-PL actuators
    • Adjustable seat, pedals and direct drive mounting
    • FIA approved seats and seat belts compatibility

              Technical Specification

QS-V20 MOTION COCKPIT

Architecture: 4DOF with TRACTION LOSS
Maximum velocity: 900 mm/s
Maximum acceleration: 0.88G
Vibrations frequency range: 0-100Hz
Maximum control frequency: 1000 Hz
Latency: <8ms

QS-V20 SYSTEM PERFORMANCE

Heave: – 51.8 mm, 51.6 mm
Roll: – 7.6°, 7.6°
Pitch: – 5.5°, 5.5°
Yaw: – 6.1°, 6.1°

QS-V20 DIMENSIONS

Total length: 1716 mm | 67.55 in
Total width: 1195 mm | 47.05 in
Total height: 1020 mm | 40.16 in

QS-V20 PAYLOAD

Max user weight: 150 kg | 330.7 lb

CONNECTION: USB
